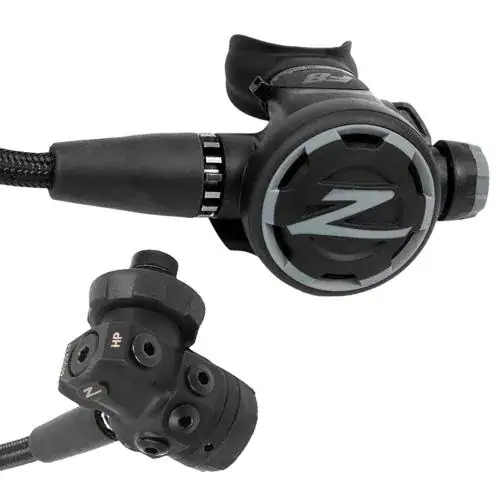

Zeagle F8 DIN Scuba Diving Regulator

Zeagle F8 DIN Regulator – US-Made Balanced Diaphragm Regulator Built for Serious Recreational and Advanced Diving

The Zeagle F8 is Zeagle's current flagship regulator, built on an entirely new platform and representing the most refined version of their long-running Flathead series lineage.

If you are an experienced recreational diver or an advanced diver who wants a high-performance, environmentally sealed regulator made in the USA, this is worth a serious look.

One important note before going further: despite the "DIN" in the product title, the F8 is set for yoke valves. Confirm the valve configuration with the retailer before purchasing if your cylinder uses a DIN fitting.

First Stage: Sealed Against the Water

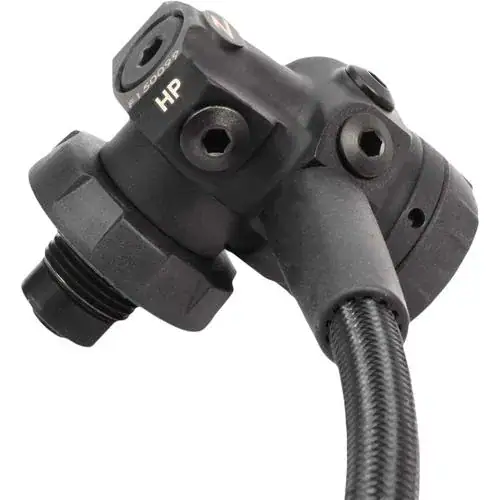

The F8 first stage is a balanced diaphragm design, which means a flexible membrane transmits pressure changes to the internal mechanism rather than allowing water to flow through it.

In practical terms, this matters a great deal for longevity. Salt, sand, chlorine, and pool acids never reach the working parts of the regulator. Corrosion and mineral buildup, the two most common causes of regulator degradation over time, are kept out entirely.

The housing is black chrome-plated marine brass, with stainless steel and polymer components internally. Zeagle uses a conical precision stainless steel high-pressure valve paired with an advanced polymer seat, a combination they say improves responsiveness and extends service life compared to conventional poppet-and-seat arrangements.

Port configuration gives you genuine flexibility for a fully rigged setup:

• 2 high-pressure (HP) ports, 7/16" threaded, for SPG or transmitter
• 5 low-pressure (LP) ports, 3/8" threaded, for your primary second stage, octopus, BCD inflator, and dry suit if applicable

Five LP ports is a generous count. You will not be hunting for adapters or T-pieces to run a full recreational or light technical configuration.

The first stage sits very low in profile, barely clearing the tank valve, with low-pressure hoses routed directly out to the sides. Divers who find top-heavy or wide first stages awkward in confined spaces or when tank-handling will appreciate the compact footprint.

Second Stage: Adjusted to How You Breathe

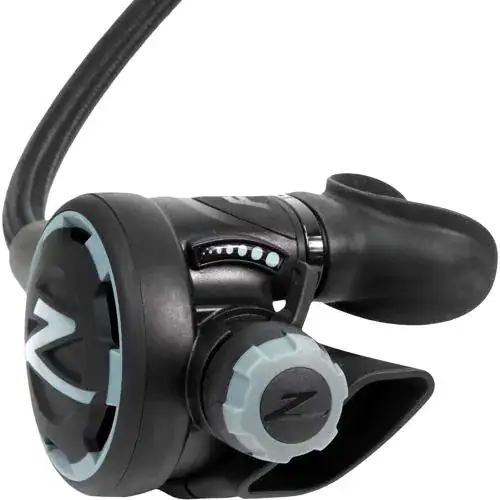

The F8 second stage is a pneumatically balanced downstream demand valve. Pneumatic balancing means the breathing effort stays consistent as cylinder pressure drops over the course of a dive, rather than becoming harder to trigger as the tank empties.

Two diver-adjustable controls let you tune the second stage to your conditions and preference:

• Inhalation effort knob adjusts how easily the valve opens when you inhale, useful for matching the regulator to your breathing style or conserving gas at depth
• Dive/Pre-Dive Venturi switch (free-flow control) shifts the internal airflow dynamics, reducing the risk of a free-flow on the surface while maximizing ease of breathing once you are underwater

The case is molded from high-impact-resistant thermoplastic, smaller and lighter than the previous Zeagle generation. Silicone rubber and elastomeric polymers are used throughout the flexible components.

The mouthpiece is described as smaller than its predecessor, with super-soft silicone and color-accented bite lugs designed to resist tearing. A snap-in insert near the mouthpiece lets you swap in a color accent if personalization matters to you.

The exhaust valve has been redesigned for lower exhalation effort and drier exhaled breath, which reduces the wet gurgle some divers experience with older regulator designs.

Cold Water and Anti-Freeze Design

The F8 is built with cold-water diving in mind. The second stage includes a heat sink with improved materials and greater surface area to dissipate the cold that builds up as expanding gas cools the mechanism during breathing. This is the same principle used in most cold-water-rated regulators: drawing heat away from the vulnerable internal components slows ice formation.

The zirconium-plated inlet tube adds another layer of corrosion resistance at one of the most exposed points on the second stage.

The environmental seal on the first stage also contributes here. Water that cannot enter the mechanism cannot freeze inside it.

Nitrox Compatibility

The F8 is Nitrox ready to 40% O2 out of the box. No additional cleaning or servicing is needed to dive enriched air mixtures up to that concentration. If you dive 32% or 36% Nitrox as a recreational diver, you are fully covered without any modification.

Divers who use higher oxygen fractions for technical or CCR applications should note the 40% limit and factor that into their decision.

What Is in the Box

• F8 first stage (yoke configuration, black chrome-plated brass)
• F8 second stage with 30" (76 cm) hose, 3/8" threaded
• Comprehensive owner's manual

Total weight with hose is approximately 41 oz. (1,161 g).

Who This Regulator Suits

The F8 is aimed at experienced recreational divers and advanced divers who dive frequently enough to care about long-term reliability, and who want adjustable breathing performance rather than a fixed-feel entry-level regulator.

The environmental seal makes it a strong choice for divers who regularly dive in salt water, cold water, or pools and want protection against the internal corrosion that shortens regulator service intervals.

The five LP ports and cold-water heat sink also make it a reasonable consideration for divers moving toward more complex configurations, dry suit diving, or colder environments.

If you are a brand-new diver buying your first regulator and diving only occasionally in warm, clear water, the F8 is more regulator than you need right now. A simpler, less expensive setup will serve you fine until you know what kind of diving you want to pursue.

If you are a committed diver who values US manufacturing, a sealed first stage, and user-adjustable breathing performance, the Zeagle F8 is built to earn its place in your kit and stay there for years.
