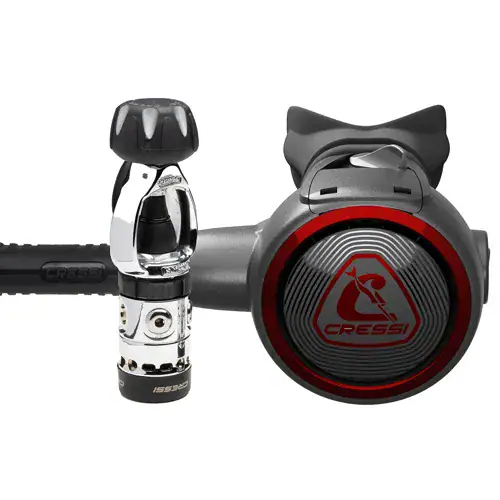

Cressi AC5 Zen Scuba Diving Regulator

Cressi AC5 Zen Regulator: Balanced Diaphragm First Stage with a Lightweight Second Stage

The Cressi AC5 Zen is a complete regulator set, first stage and second stage together, built around a balanced diaphragm first stage and a compact, lightweight second stage called the Zen.

If you are a recreational diver looking for a solid, serviceable regulator that does not weigh down your kit bag or your jaw, this is worth a careful look.

What "balanced diaphragm" means for your breathing

The AC5 first stage uses a balanced diaphragm design. Balanced means the mechanism compensates for changes in cylinder pressure as your tank empties, so the effort it takes to draw a breath stays consistent whether your tank is full or nearly spent.

Diaphragm, as opposed to piston, means the internal mechanism is sealed from the water by a flexible membrane. That matters if you dive in cold, silty, or contaminated water, because nothing in the working parts is directly exposed to whatever is in the water around you.

One note worth flagging: the specifications list the first stage type as both "balanced diaphragm" and "piston" in different fields. The description consistently describes it as a balanced diaphragm system, and that is the detail to rely on for understanding how it performs.

The Zen second stage: built to reduce jaw fatigue

The Zen second stage is the part that goes in your mouth, and Cressi has kept it genuinely small and light.

Weight without hoses is just 5 oz (149 g). For context, that is light enough that you will not feel the second stage pulling downward during a long dive, which is a real comfort difference on a 60-minute reef dive compared to heavier alternatives.

The second stage uses a downstream valve system, which is the standard safe-fail design for recreational regulators. If anything were to malfunction, the valve fails open, meaning air flows freely rather than cutting off. That is exactly what you want.

Adjustments you can actually use underwater

The Zen gives you two diver-adjustable controls:

• Breathing resistance adjustment lets you tune how easily air flows on inhalation. Lighter resistance suits relaxed, slow diving; more resistance can help in strong currents where free-flowing is a risk.
• Venturi control switches the internal airflow direction. Set it to the pre-dive position on the surface to prevent the regulator from free-flowing before you descend, then flip it once you are underwater for the smoothest breathing.

There is also an anti-friction lever on the second stage, which reduces the mechanical drag in the breathing mechanism and contributes to the smooth, low-effort inhale the Zen is designed around.

First stage ports and connection options

The AC5 first stage gives you enough ports for a standard recreational configuration:

Four LP ports is enough to run your primary second stage, an octopus (backup regulator), a drysuit inflator if you use one, and a BCD inflator hose simultaneously, with no ports left fighting for space.

One HP port is standard. It connects your submersible pressure gauge or console.

The AC5 is available in both DIN and INT (yoke) versions, so you can match it to the cylinders available at your home dive site or travel destination. The DIN version is notably lighter at 644 g total, compared to 819 g for the INT version, because the DIN fitting is more compact. If you travel frequently and dive at sites that offer DIN valves, that weight difference adds up.

External IP calibration

The intermediate pressure (IP) is the pressure the first stage delivers to your second stage hose. On the AC5, this can be adjusted externally, meaning a technician does not need to fully dismantle the first stage to tune it during a service. That keeps annual servicing simpler and potentially faster.

Filtration

The AC5 first stage uses an extra-large conical filter at the inlet. A larger filter surface area means slower clogging and better filtration efficiency, which matters if you dive in environments where the air supply quality is variable or where particulates in the water could affect the mechanism.

Certification

The AC5 Zen carries CE EN250 certification, the European standard for scuba regulators. It tests performance across a range of water temperatures and depths, and passing it is the baseline quality benchmark you should expect from any regulator sold for recreational diving in Europe.

Who this regulator suits, and who it does not

The AC5 Zen is a good match if you are a recreational diver who dives regularly and wants a personal regulator rather than renting. The lightweight second stage makes it particularly well suited to divers who log long bottom times or who experience jaw fatigue with heavier mouthpieces.

It travels well. The DIN version especially keeps total weight down, and the compact Zen second stage takes up less bag space than bulkier alternatives.

It is not aimed at technical divers running multiple cylinders or decompression profiles. The single HP port means you cannot run a separate transmitter and a mechanical gauge from the first stage alone, and the overall specification sits squarely in recreational territory.

If you are a brand-new diver still working through your first open-water dives on rental gear, you might want to wait until you have a clearer sense of your diving style before committing to a personal regulator. But if you are past that stage and ready to own your own kit, the Cressi AC5 Zen is a capable, well-specified set worth considering seriously.
