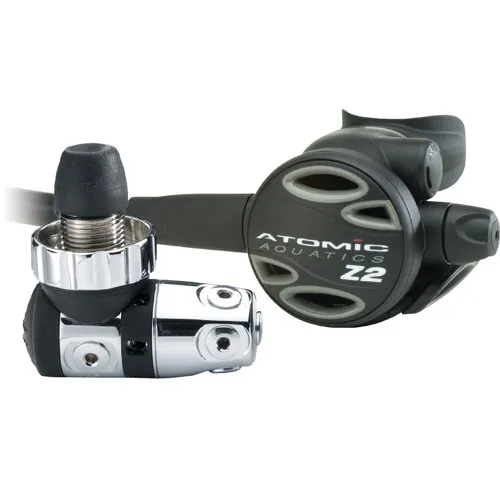

Atomic Aquatics Z2 DIN Scuba Regulator

Atomic Aquatics Z2 DIN Regulator: A Compact, High-Performance First Stage for Serious Recreational Divers

The Atomic Aquatics Z2 DIN is a balanced piston regulator built for recreational divers who want genuinely premium breathing performance without buying into the top of the Atomic Aquatics lineup.

If you are a certified diver who has been renting gear, or someone upgrading from an entry-level regulator, this is the kind of purchase you make once and keep for a long time.

What You Are Actually Getting

The Z2 sits at the entry point of the Atomic Aquatics range, but it is built on the same platform as the company's flagship B1/T1 regulator. The breathing mechanics are not a simplified version of the better models. They are the same design.

The first stage uses a balanced flow-through piston design. "Balanced" means the regulator delivers consistent airflow regardless of how full or empty your tank is. You will not feel the breathing get harder as your tank pressure drops. That consistency matters on longer dives and at depth.

The second stage is pneumatically balanced, which means the effort required to open the valve and draw a breath stays even across different depths and conditions. Combined, the two stages make for a regulator that breathes freely whether you are at 10 metres or 40.

The DIN Connection

This is a DIN configuration, meaning the first stage threads directly into the tank valve rather than clamping over it with a yoke. DIN connections are more secure, handle higher tank pressures, and are the standard at many European and technical dive sites.

If you mostly dive with yoke (A-clamp) valves and your dive centre does not stock DIN tanks, check before you buy. A DIN-to-yoke adapter solves this, but it is an extra step worth knowing about upfront.

Materials and Build Quality

The first stage body is chrome-plated brass and 316-grade stainless steel, which is a corrosion-resistant combination suited to regular saltwater use. The second stage demand valve body is zirconium-plated brass, with a titanium lever and sealing orifice. Titanium in the lever and orifice matters because those are high-wear components that see repeated mechanical stress on every breath.

The seat system is one of the more thoughtful design details here. Most piston regulators use a sharp-edged piston that gradually cuts into the seat material over time. Atomic Aquatics uses a conical seat with a blunt-ended piston, which spreads the contact load and reduces seat wear. The practical result is a claimed service interval of 3 years or 300 dives, whichever comes first. That is a meaningful interval for a recreational diver who does a few dozen dives a year.

The high-pressure piston seal is self-lubricating, which reduces friction and means one less thing that needs attention between service visits.

Breathing Feel and the AFC System

The second stage includes Atomic Aquatics' Automatic Flow Control (AFC), a diaphragm-activated system that adjusts venturi effect automatically as you breathe and as depth changes. Venturi effect is the way airflow through the second stage can either assist or resist inhalation depending on conditions. Most regulators ask you to manage this manually with an adjustment knob. The AFC handles it without input from you.

There is still a manual adjustment knob on the second stage for situations where you want to override it. The knob is soft over-molded for easy grip with gloves on.

The diaphragm itself is silicone rubber, which holds up better than synthetic alternatives in cold water and over time.

Ports and Hose Configuration

The first stage gives you a generous number of ports for a regulator at this level:

• Seven low-pressure (LP) ports at 3/8" threading, for your second stage, BCD inflator, drysuit, and any accessories
• Two high-pressure (HP) ports at 7/16" threading, for your pressure gauge or dive computer transmitter

Seven LP ports is more than most recreational divers will ever use, but it means you will not be hunting for an adapter or a port expander if your kit grows.

The included hose is 32 inches (81.3 cm) long with 3/8" threading. That length suits most standard setups.

Nitrox Compatibility

The Z2 DIN is Nitrox ready out of the box up to 50% oxygen, or up to 80% oxygen with appropriate preparation. If you are already enriched-air certified, or planning to get there, you do not need to do anything special to the regulator before using it with standard Nitrox blends.

Size and Weight

The Z2 is described as Atomic Aquatics' most compact regulator, and the total weight of 1.94 lbs (844 g) for the full system reflects that. For a regulator with this level of internal engineering, that is a relatively light package. It travels well and will not add bulk to a kit bag.

Who This Regulator Is Not For

If you dive in very cold water regularly and need a first stage rated for extreme cold-water performance, check the cold-water specifications carefully before committing.

Technical divers running multiple cylinders or complex gas switching setups will likely want to look at Atomic Aquatics' higher-tier options, where cold-water performance and technical configurations are explicitly addressed.

The Short Version

The Z2 DIN is a well-engineered, compact regulator that breathes like a premium product because it is built on the same mechanical foundation as one. The seat design, AFC system, and material choices are not compromises made to hit a lower price point. They are the same solutions Atomic Aquatics uses across their lineup.

For a recreational diver ready to own their own regulator and not replace it for many years, the Z2 DIN is a serious option worth putting at the top of your shortlist.
