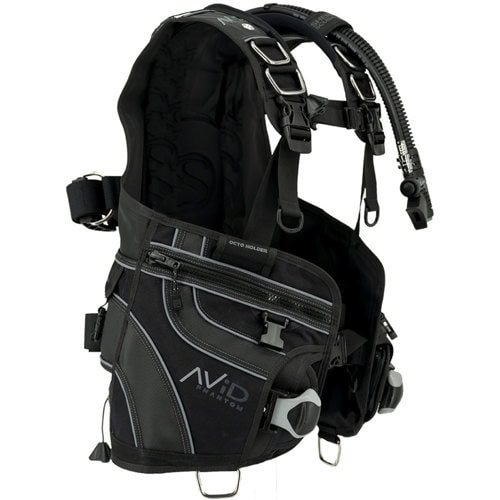

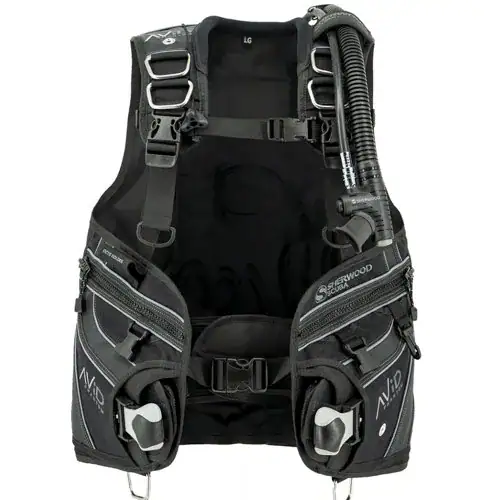

Sherwood Avid Phantom Jacket Style BCD

Sherwood Avid Phantom Jacket Style BCD: A Weight-Integrated Jacket Built for Recreational Diving

The Sherwood Avid Phantom is a jacket-style buoyancy control device (BCD) aimed squarely at recreational divers who want a reliable, well-fitted piece of kit that handles weighting, buoyancy, and gear attachment without fuss.

If you are certified and diving regularly, maybe working toward more independent dive planning, this is the kind of BCD that gets out of your way and lets you focus on the dive.

What Jacket Style Means for You

A jacket-style BCD wraps the air cell around your torso rather than concentrating it at your back. When the Avid Phantom inflates, air surrounds you on the sides and front as well as the rear, which keeps you upright and stable at the surface with very little effort.

That surface stability is genuinely useful: you can relax, breathe, and sort yourself out after a dive without having to fin to stay face-up.

The trade-off, which is worth knowing, is that a jacket can push you slightly forward-leaning underwater if you are over-inflated. The Avid Phantom is described as balanced for a horizontal swimming position, which helps, but dialing in your weighting properly still matters.

Lift Capacity by Size

How much lift a BCD can generate determines whether it can keep you and your gear at the surface when you need it to. The Avid Phantom scales lift with size, which is sensible because larger divers in thicker wetsuits need more buoyancy compensation.

For most recreational divers in a wetsuit, these numbers are more than adequate. If you dive a drysuit or very thick exposure protection and carry a lot of steel, you may want to check your total buoyancy requirements against the figure for your size.

The CQR-3 Weight Integration System

This is one of the Avid Phantom's more notable features, and it is worth understanding how it works before you dive with it.

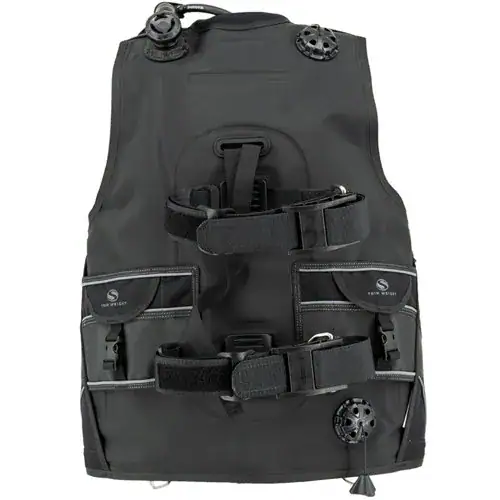

The BCD uses Sherwood's CQR-3 weight system, which combines releasable front pockets with non-releasable trim pockets at the rear. The releasable pockets are the ones you pull in an emergency to ditch weight and get to the surface faster. The rear trim pockets hold weight that stays put and helps keep your body horizontal in the water.

Weight capacity by size:

• Releasable pockets (XS/SM): up to 16 lbs (7.26 kg) total, split between two pockets of 8 lbs each
• Releasable pockets (MD/LG/XL): up to 20 lbs (9 kg) total, with each pocket holding up to 13 lbs depending on size
• Releasable pockets (2XL and 3-5XL): up to 26 lbs (11.8 kg) total

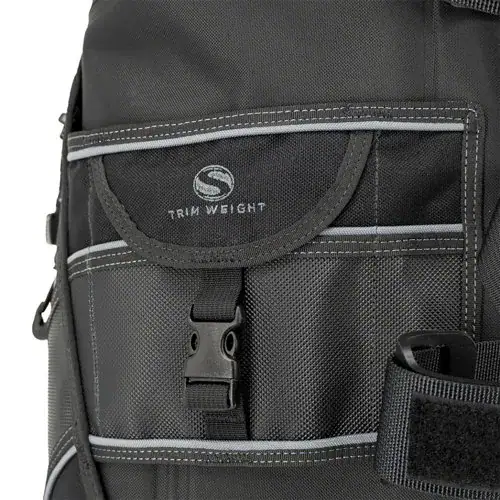

• Non-releasable rear trim pockets: 5 lbs (2.27 kg) each, on all sizes

The forward buckle placement is designed to make loading the weight pockets easier, and the larger handles on the CQR-3 are a practical detail if you dive with thick gloves, where grip on smaller hardware becomes genuinely difficult.

Buoyancy Control and Dump Valves

Controlling your buoyancy underwater means being able to add and release air quickly. The Avid Phantom gives you three dump valves:

• Right shoulder: overpressure relief and pull dump handle
• Left shoulder: cable-activated pull dump, triggered via the inflator hose
• Lower left of the air cell: a third dump for venting air when you are feet-up or in an unusual position

Having dumps at both shoulders and at the lower cell means you can release air regardless of your body angle, which matters when you are ascending or repositioning mid-dive.

The power inflator uses a 3/8-inch threaded low-pressure quick-disconnect hose, a standard fitting compatible with most regulator setups.

Fit and Adjustment

A BCD that fits poorly is uncomfortable and affects your trim in the water. The Avid Phantom addresses this with a system of adjustable straps across the torso, waist, and chest.

• Torso-adjustable shoulder straps with squeeze-style side-release buckles
• Adjustable waist strap with a side-release buckle and cummerbund
• Removable and adjustable sternum strap with its own squeeze-style buckle

The cummerbund wraps around your midsection and helps keep the BCD snug when the air cell is partially deflated. The 3-D air cell combined with the suspension strap system is designed to prevent the BCD from squeezing your torso when fully inflated, which is a comfort issue that cheaper jacket BCDs can struggle with.

Construction and Hardware

The air cell is built from 1000 Denier nylon with a urethane laminate, a heavy-duty fabric choice that resists abrasion from boat decks, rocks, and general handling. The seams are RF (radio frequency) welded rather than stitched, which creates an airtight bond and reduces the chance of slow leaks developing over time.

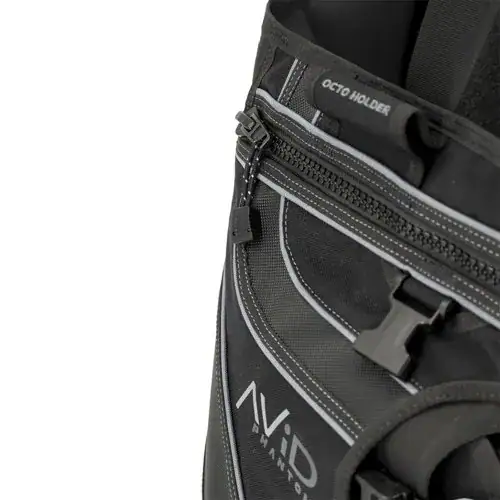

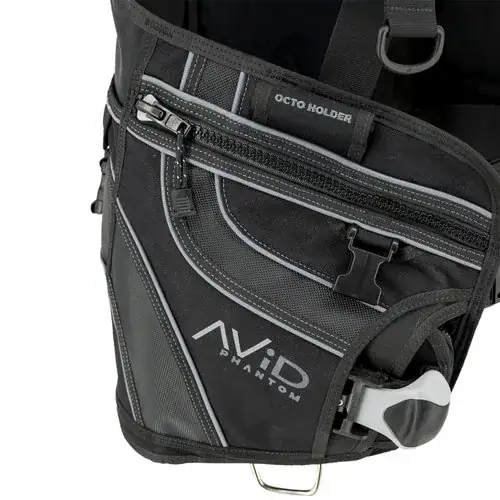

For gear attachment, the Avid Phantom has six stainless steel D-rings, multiple clips, and two zippered side pockets for accessories like slates, SMBs (surface marker buoys), or a small reel.

Who This BCD Is Not For

The Avid Phantom is a recreational jacket-style BCD. It is not designed for technical diving, where a back-inflate or wing-and-backplate setup is generally preferred for horizontal trim and the ability to run stage cylinders.

If you are planning to dive with twin cylinders or move toward decompression diving, this is not the right platform. For straightforward recreational diving, including warm-water travel and local diving in a wetsuit, it covers the ground well.

The size range runs XS through 3-5XL, which is broader than many BCDs in this category, making it a realistic option for divers who struggle to find gear that fits at the smaller or larger ends of the scale.
