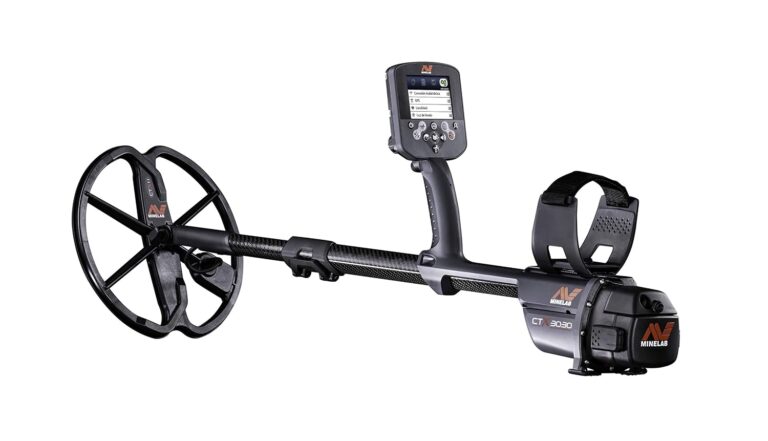

Minelab CTX 3030 Waterproof All-Terrain Metal Detector

Minelab CTX 3030: A High-Performance Multi-Frequency Metal Detector for Serious Hobbyists

The Minelab CTX 3030 is a full-featured, waterproof metal detector built for adults who want to move beyond entry-level machines and start finding targets that cheaper detectors miss.

If you have been detecting for a while and feel like your current machine is leaving things in the ground, this is the kind of upgrade worth understanding closely.

What makes the CTX 3030 different from most detectors

Most consumer metal detectors transmit at a single frequency. The CTX 3030 uses FBS 2 (Full Band Spectrum) multi-frequency transmission, which means it sends multiple frequencies into the ground simultaneously.

In practical terms, this matters because different metals respond most clearly at different frequencies. A single-frequency machine is always making a compromise. The CTX 3030 is not.

This becomes especially useful in variable ground conditions, where mineralized soil, salt sand, or wet beach sand would otherwise cause a single-frequency detector to false-signal constantly or lose depth.

Target identification: what you are actually looking at

Finding a signal is one thing. Knowing whether to dig it is another.

The CTX 3030 uses a FeCo target ID system, which plots targets on a two-axis grid based on their ferrous (iron) and conductive properties. Most detectors give you a single number. This machine gives you a position on a chart, which is a more complete picture of what is likely buried.

On top of that, Target Trace and Target Separation let you identify multiple overlapping targets at once. In a heavily hunted area where good targets often sit close to iron trash, that matters.

You can also set adjustable Tone ID Profiles, so the audio response you hear matches the targets you actually care about. If you want coins to sound different from iron nails, you can set that up and tune it to your preference.

Controls and on-the-go adjustments

The CTX 3030 runs 5 built-in programs that cover different detecting scenarios.

A single central User button lets you quickly adjust Sensitivity, Noise Cancel, Audio, and Ground Balance without stopping to dig through menus. In the field, especially when conditions change mid-session, that kind of fast access is genuinely useful.

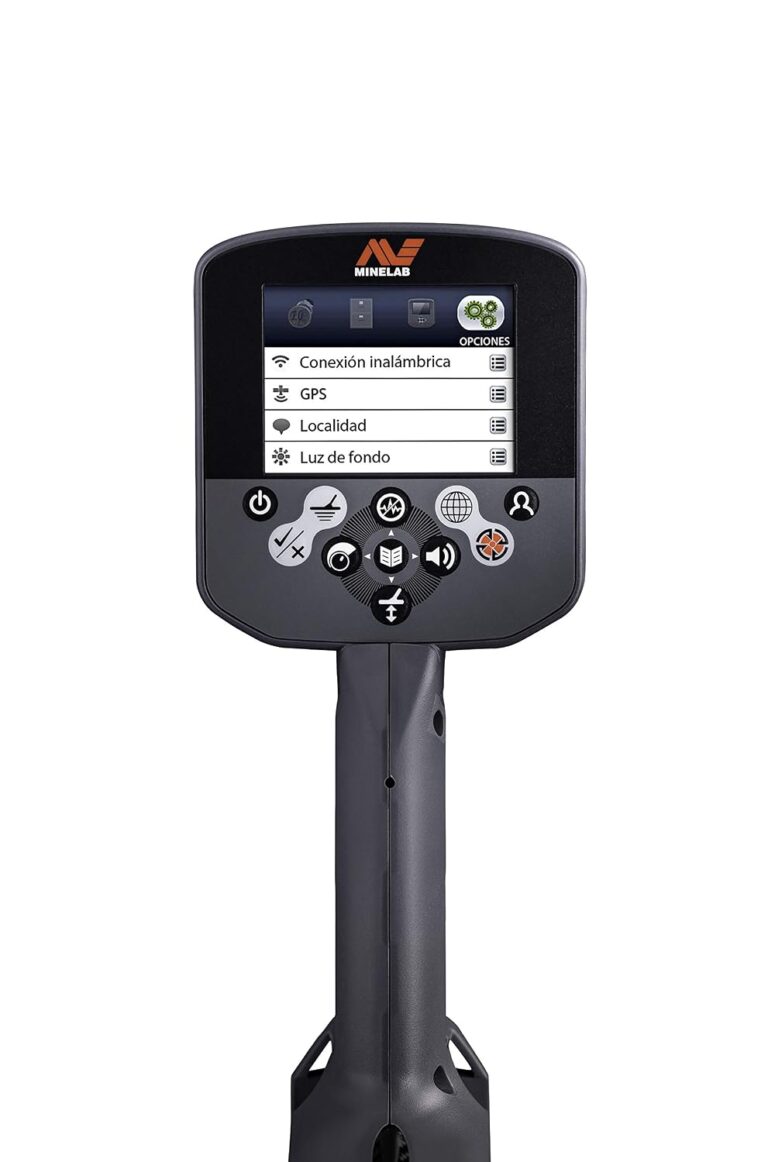

The display is a full-color LCD, bright enough to read your target data clearly. All the information the machine is processing, including that FeCo target ID plot, shows up here.

Waterproofing: what the rating actually means

The CTX 3030 is rated waterproof to 10 feet (3 meters). This means you can wade into surf, search a riverbank, or work wet sand without worrying about the detector.

Worth noting: the specs list an IP54 rating for the unit itself. IP54 means protection against dust and water splashing from any direction, which is a lower standard than full submersion. The 10-foot waterproof claim likely applies specifically to the coil and the overall system as designed for shallow water use. If you plan to submerge the control box regularly, read the manufacturer's guidance carefully before doing so.

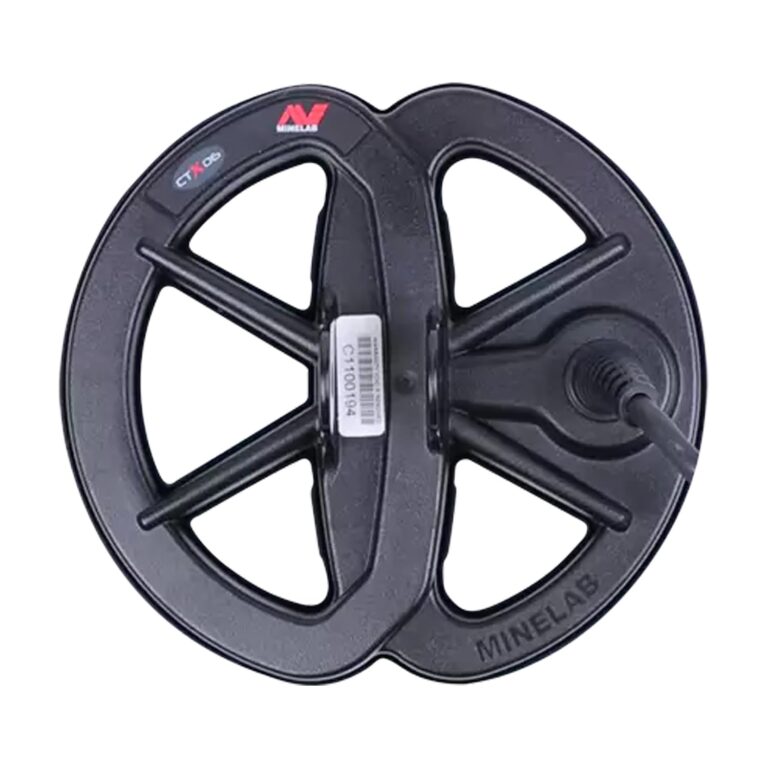

The included coil is an 11-inch waterproof Double-D Smart Coil. A Double-D coil covers more ground per sweep than a concentric coil and handles mineralized ground better. The "Smart" designation refers to coil-to-detector data communication, meaning the detector recognizes the coil and adjusts its settings accordingly.

Physical setup

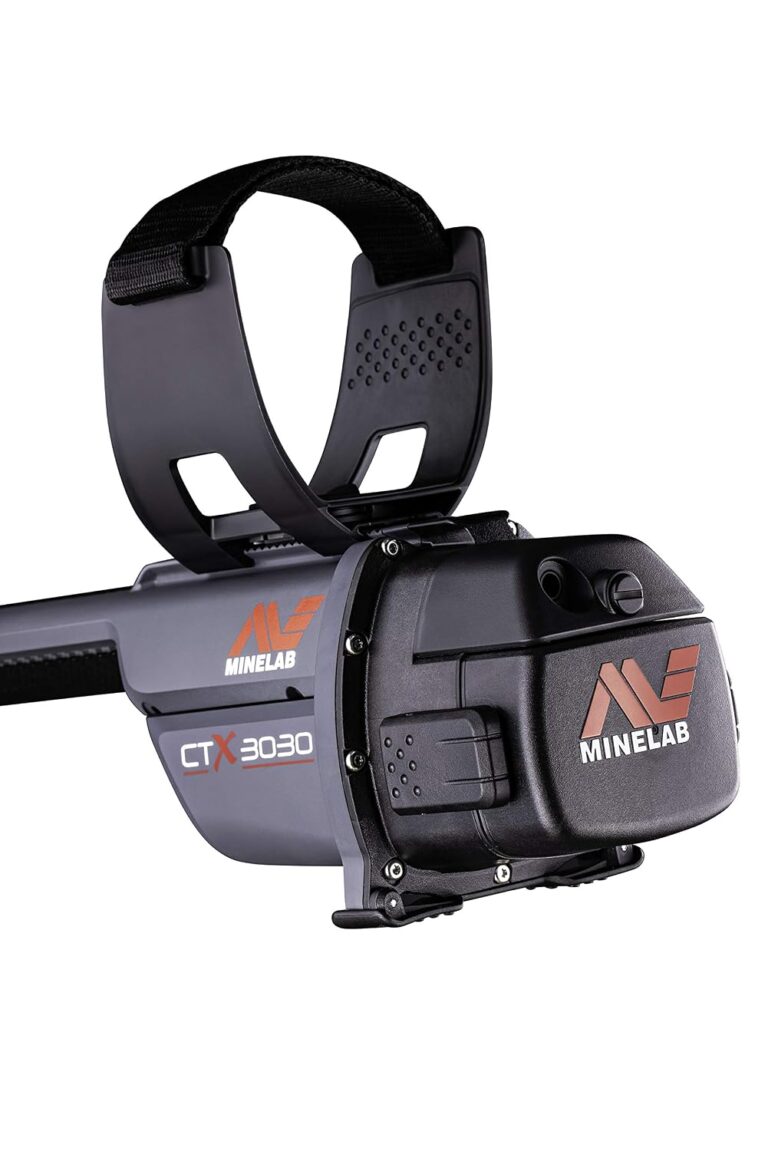

At 5.2 pounds, this is not a lightweight machine. Minelab has positioned the battery weight behind the armrest to improve balance and reduce arm fatigue over a long session. That design choice helps, but if you detect for several hours at a stretch, the weight is something to factor in.

Audio output

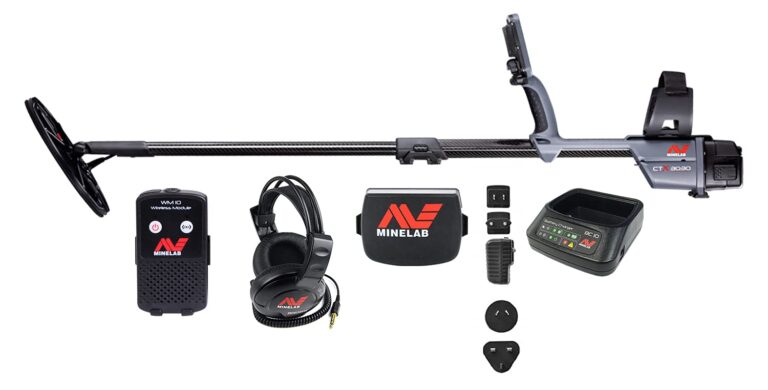

You can listen through the built-in speaker, the supplied headphones, or your own pair. Having the option to use your own headphones is worth mentioning because many experienced detectorists have a preferred set they already trust.

Who this is for, and who it is not

The CTX 3030 is built for the dedicated hobbyist or experienced detectorist who wants a machine capable of serious beach, field, and shallow water work. The multi-frequency technology, detailed target ID system, and waterproof depth make it a step above recreational entry-level machines.

If you are just starting out, this detector has a learning curve. The FeCo target ID system, tone profiles, and program customization reward someone who is willing to put in time understanding what the machine is telling them.

If you want something simple to pick up and swing on a casual basis, a simpler single-frequency machine will serve you better and cost considerably less. The CTX 3030 earns its place in the hands of someone who is ready to use what it offers.
